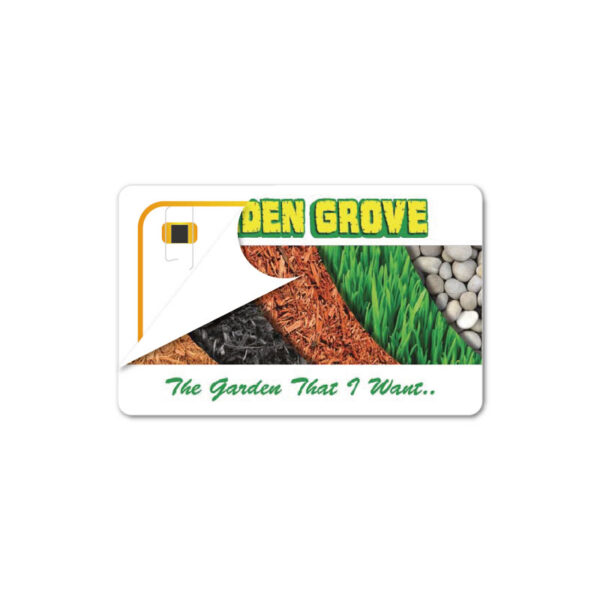

13.56MHz NXP Mifare Ultralight EV1 Contactless Chip RFID Smart Card
13.56MHz NXP Mifare Ultralight EV1 Contactless Chip RFID Smart Card is a high-frequency contactless smart card that operates at 13.56 MHz and is designed for low-cost and high-performance applications. The card has a small storage capacity, typically 48 bytes, and is suitable for scenarios such as ticketing, promotions, and short-term identity authentication. Mifare Ultralight EV1 supports a variety of data storage and simple encryption functions, has good anti-interference capabilities, and can work stably in a variety of environments. Its lightweight and economical features make it an ideal choice in smart card solutions, and it is widely used in public transportation, event tickets, and other applications that require fast reading.
Product Name | 13.56MHz NXP Mifare Ultralight EV1 Contactless Chip RFID Smart Card |
Material | PVC (Also support PETG, PLA, Wood, ABS) |
Size | CR80 (85.5 * 54 mm or 3.375×2.125 inch or 3-3/8 “x 2-1/8”) or customized size |
Thickness | 0.86mm (0.034 inch or 33.86mil), generally customizable to a thickness of no more than 2mm |
Corners | 1/4 corner radius 3.18mm (r=0.125 inch) |
Printing | offset printing, screen printing, UV color printing, digital printing, etc. |
Lamination | Glossy, Matte, Frosted |
Personalization | laser code, serial number, barcode, QR code, magnetic stripe, etc. |
Data Processing | Support encryption and decryption |
Low Frequency Chips (LF) ISO 11784/85 |
TK4100, EM4200/EM4305/EM4450, Atmel T5577/T5567, NXP Hitag 1/Hitag 2/Hitag S256/Hitag S2048, etc. |
High Frequency Chips (HF) ISO/IEC 14443-A | ISO/IEC 15693 | ISO/IEC-18000-3 | ISO/IEC 7816 |
Fudan FM11RF08S (Fully compatible to NXP Mifare 1k), NXP Mifare Classic EV1 S50/S70, NXP Mifare Ultralight EV1/C, NXP ICODE SLI/SLIX/ SLIX 2/SLIX-L/SLIX-S/DNA, NXP MIFARE DESFire EV1/Light, NXP NTAG213/215/216 |
Ultra High Frequency Chips (UHF) ISO/IEC 18000-6C (63)/ISO/IEC 18000-6D (64) | EPCglobal Class1 Gen2 |
Alien Higgs 3(H3)/Higgs 9(H9), Impinj Monza 4D/4E/4QT/R6/R6P, NXP UCODE 7 (U7)/UCODE 8 (U8)/UCODE 8M (U8M)/UCODE 9 (U9) |
Contact Chips | SLE5542 (SLE4442 updated version) / SLE5528 (SLE4428 updated version) | FM4442/FM4428 | AT24C01/02/04/16/32/64/128/256 |
Application Scenarios | access cards, payment cards, medical cards, identification cards, visiting cards, library cards, bus cards, animal identification cards, anti-counterfeiting cards, transportation cards, campus cards, garbage classification cards, smart trash cans, elevator cards, parking cards, electronic ticketing, electronic gift vouchers, election cards, membership cards, traceability cards, patrol cards, inspection cards, hotel cards, door lock cards, one card system, etc. |
LF (Low Frequency) | HF (High Frequency) | UHF (Ultra High Frequency) |
125 KHz | 134.2 KHz ISO 11784 / 11785 Read only | R/W Low data speed 1-5cm data reading range Read only one tag at one time Used for access control and animal identification |
13.56 MHz ISO 14443A / 14443B / 15693 (NFC ISO 18092) Read & Write available Regular data speed Available for encryption, some support AES-128 2-10cm data reading range (affected by metal) Multiple tags could be detected at one time |
840-960 MHz ISO/IEC 18000-6C (63)/ISO/IEC 18000-6D (64) | EPCglobal Class1 Gen2 Read & Write available High data speed Reach up to 15 meters data reading range Multiple tags could be detected at one time Signal could be easily influenced by metal, water, wall, human body, etc. |
